Why can't my car move after shifting gears, even though I can hear the transmission and motor running?

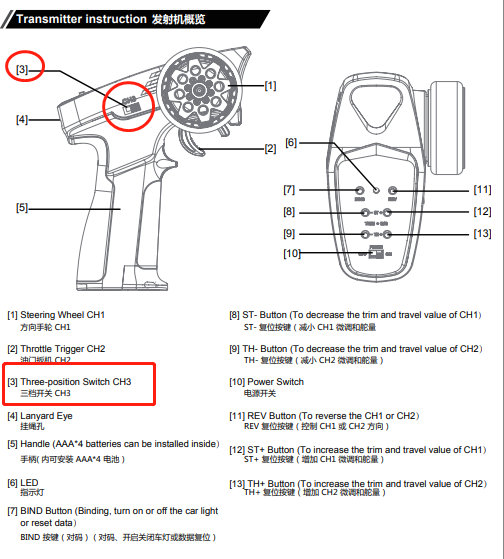

As shown in the reference manual screenshot, there are three positions the switch can be in: the fast gear, slow gear, and neutral. It's important to note that the neutral position is in the middle, which means the vehicle won't move if the switch is accidentally left there.
Another possibility is incomplete gear engagement during shifting, which prevents power transmission. In this case, we need to make some adjustments and tweak the steering to get things running smoothly again.
To adjust the trim value of the channel.
• When the steering wheel is in the neutral position, press the ST+/- button to adjust the CH1 trim.
• When the throttle trigger is in the neutral position, press the TH+/- button to adjust the CH2 trim.
ST+/TH+: Increase the trim value. ST-/TH-: Decrease the trim value. Trim range: -150 us – 150 us; The step is 5us;
by default, it is 0.
When the trim setting action takes effect, the buzzer will sound shortly for a prompt. If you press and hold it, the value
remains changes continuously. The buzzer will sound twice for a prompt when the trim is across the neutral position.
And when it reaches the endpoint, the buzzer will sound long for a prompt.
To adjust the travel range value of the channel.
• When the steering wheel is located in the maximum travel or minimum travel, press the ST+/- button to adjust CH1
travel value.
• When the throttle trigger is at the maximum or minimum travel, press the TH+/- button to adjust the CH2 travel value.
ST+/TH+: Increase the travel value. ST-/TH-: Decrease the travel value. Travel range: 0-120%, by default, it is
100%, the step is 5%.
When the travel setting action takes effect, the buzzer will sound shortly for a prompt. If you press and hold it, the value
remains changes continuously. The buzzer will sound long for a prompt when reaching the endpoint.
Similar case videos：
FMS 1:24 FCX24 Chevrolet K5 Blazer Can't move after shifting gears
